12-Inch Dual-Bevel Glide Miter Saw – Precision Cutting Tool

Description

The Bosch Dual Bevel Glide Miter Saw – 12″ offers wider crosscuts, enhanced alignment and smooth glide for the life of the tool. The Bosch miter saw’s 15 amp motor delivers no-load speeds of 3,800 RPM for quick, accurate cuts in many materials. For added convenience and versatility, the saw is compatible with a variety of 12″ blades, and it has a clear lower guard to provide unobstructed cutline visibility. The GCM12SD provides easy adjustments with upfront bevel and miter controls and detents at common angles.

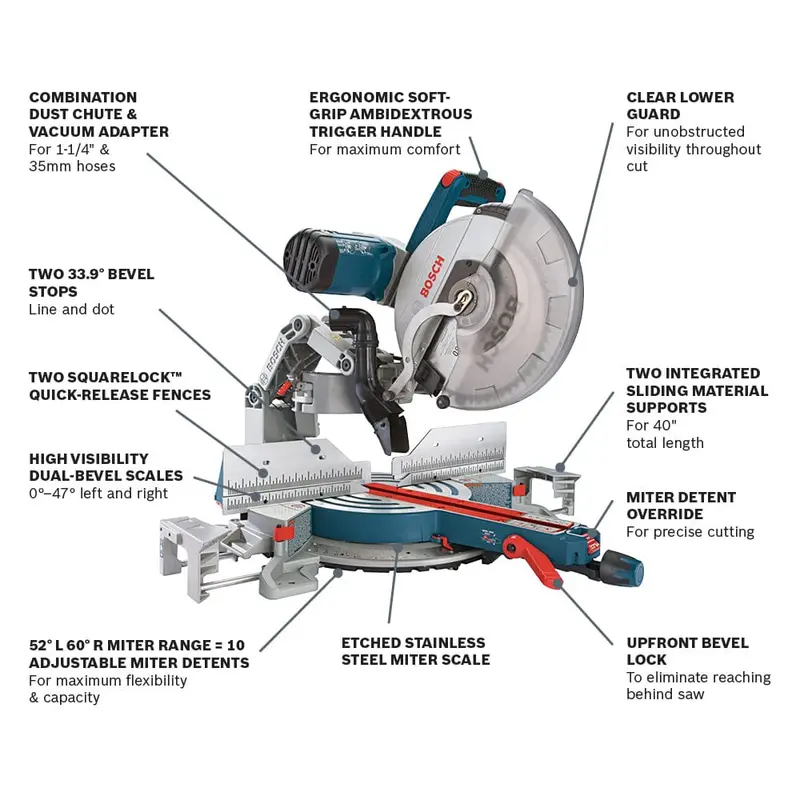

Features

• Integrated expanding base extensions

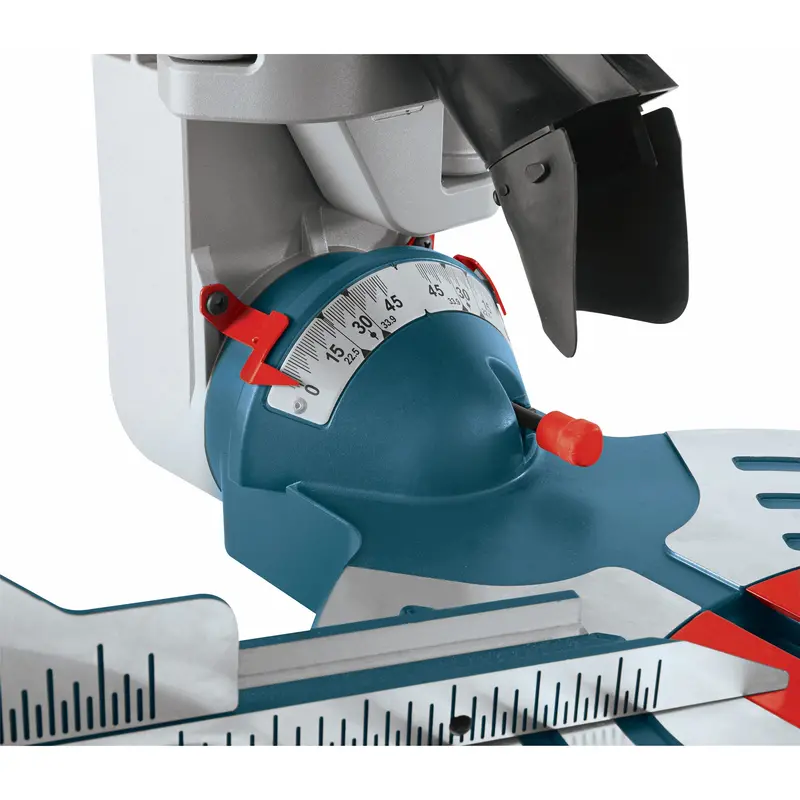

• Large easy-to-read uniform bevel and stainless steel miter scales

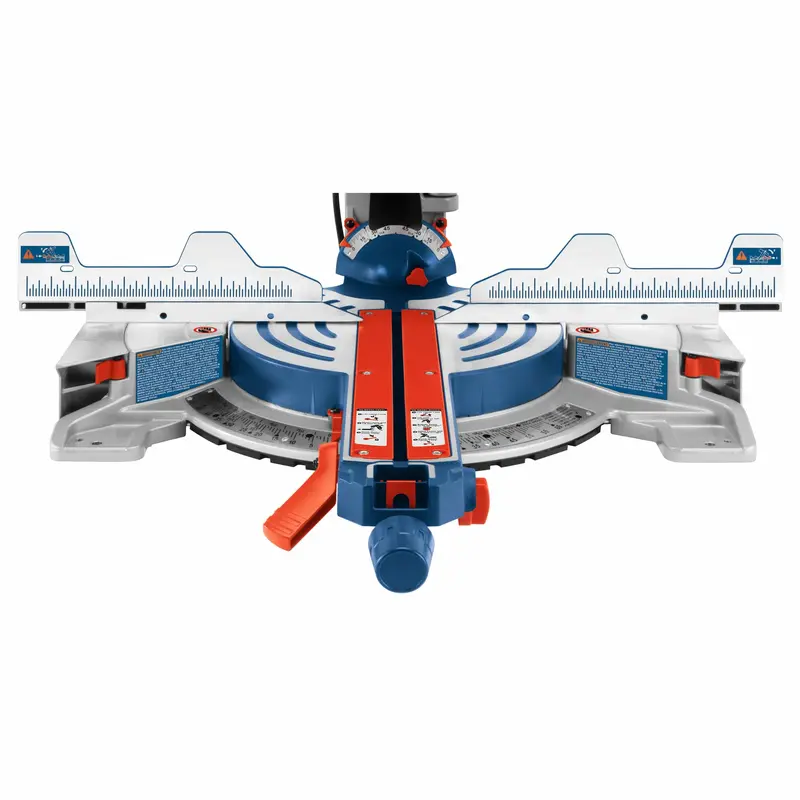

• Pre-aligned SquareLockfences help the saw maintain precision throughout its life

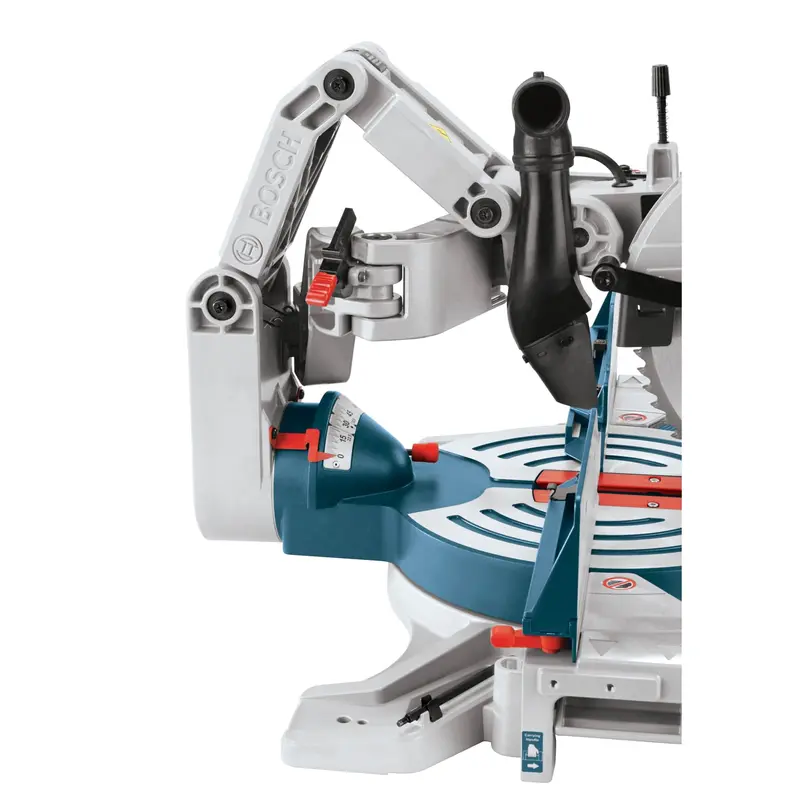

• A soft-grip ambidextrous handle, along with a combination dust chute and vacuum adapter, add to user comfort

Specifications

• Amperage: 15.0
• Bevel Angle Range: 47° left and 47° right
• Bevel Stops: 0°, 33.9°, 45° and 47° (L/R)
• Blade Size: 12″
• Max. Base Molding Against Fence: 3-7/8″ (6-3/4″ from 0° to 47 L)
• Max. Crown Molding: (38° Spring) Angled Against Fence: 5-1/4″ (5-1/2″ from 0° to 47° L)
• Max. Crown Molding: (45° Spring) Angled Against Fence: 6″
• Max. Cut Capacity – 0° Miter 0° Bevel: 3-1/2″ x 13-1/2″
• Max. Cut Capacity – 0° Miter 45° Left Bevel: 2″ x 13-1/2″
• Max. Cut Capacity – 0° Miter 45° Right Bevel: 1-1/2″ x 13-1/2″
• Max. Cut Capacity – 45° Miter 0° Bevel: 3-1/2″ x 9-1/2″
• Max. Cut Capacity – 45° Miter 45° Left Bevel: 2″ x 9-1/2″
• Max. Cut Capacity – 45° Miter 45° Right Bevel: 1-1/2″ x 9-1/2″
• Miter Angle Range: 52° Left, 60° Right
• Miter Detents: 0°, 15°, 22.5°, 31.6°, 45°, (Left/Right) 60°, (Right)
• Miter Positive Stops: 0°, 15°, 22.5,° 31.6°, 45° (Left/Right), 60° (Right)
• No Load RPM: 3,800
• Weight: 65 lb

What’s Included:

• (1) Bosch Dual Bevel Glide Miter Saw – 12″
