Description

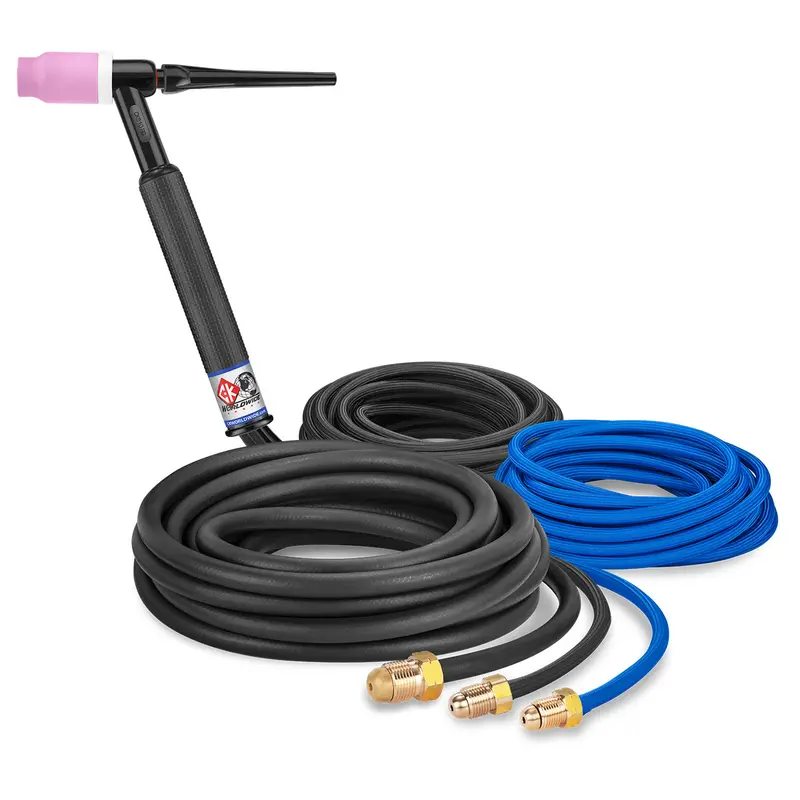

CK Worldwide’s CK5112 delivers professional-grade TIG welding performance with 500 amp capacity at 100% duty cycle, making it the smallest 500 amp torch available. This water-cooled rigid head torch combines Max Flow cooling technology with standard 12.5′ cables for reliable operation in demanding fabrication environments.
Built for precision welding applications requiring maximum amperage output, the CK5112 features a streamlined design without valve for reduced complexity. The rigid head construction ensures consistent arc positioning and superior weld quality across extended welding sessions.
- Amperage Rating: 500 amp ACHF or DCSP @ 100% duty cycle
- Cooling System: Water-cooled with Max Flow technology
- Head Style: Rigid construction for stability
- Cable Length: 12.5 feet standard configuration
- Tungsten Compatibility: .020″ to 1/4″ (0.5mm to 6.4mm) diameter
- Weight: 6-3/4 oz (191g)
- Overall Length: 9-1/4″ (23.5cm)
- Series: 3 or 51 Series head accessories
Compatible Consumables
- 3C116 — 1/16″ (1.6mm) Collet
- 3C332 — 3/32″ (2.4mm) Collet
- 3C418 — 1/8″ (3.2mm) Collet
- 3CB116 — 1/16″ (1.6mm) Collet Body
- 3CB332 — 3/32″ (2.4mm) Collet Body
- 3CB418 — 1/8″ (3.2mm) Collet Body
- 3A5 — #5 (5/16″ 8.0mm) Alumina Cup
- 3A6 — #6 (3/8″ 9.6mm) Alumina Cup
- 3A8 — #8 (1/2″ 12.8mm) Alumina Cup
- 300L — Long Backcap
Ideal for heavy-duty fabrication shops and industrial welding operations requiring maximum amperage capacity. Compatible with CK Worldwide’s complete range of 3 Series and 51 Series consumables and accessories for versatile application coverage.
