Heavy-Duty High-Base Toggle Clamp – 200 lb Load Capacity

Description

The WoodRiver® High Base Toggle Clamp delivers strong, reliable clamping power in a compact form—ideal for jigs, fixtures, and workbench setups. Designed to exert up to 200 pounds of holding force, this clamp securely locks your workpiece in place during sanding, routing, drilling, or assembly tasks.

Its high base design provides added clearance for working above the clamp body, while the compact 2-1/4 inch by 7/8 inch footprint fits easily into tight jig layouts. The quick-release toggle mechanism makes operation fast and smooth, allowing you to clamp and unclamp efficiently during repetitive tasks.

Features:

• Quick clamping action
• Installs on jigs and fixtures or movable bases
• Common uses include securing a piece for sawing, sanding, and drilling
• Provides up to 200 lb of holding capacity

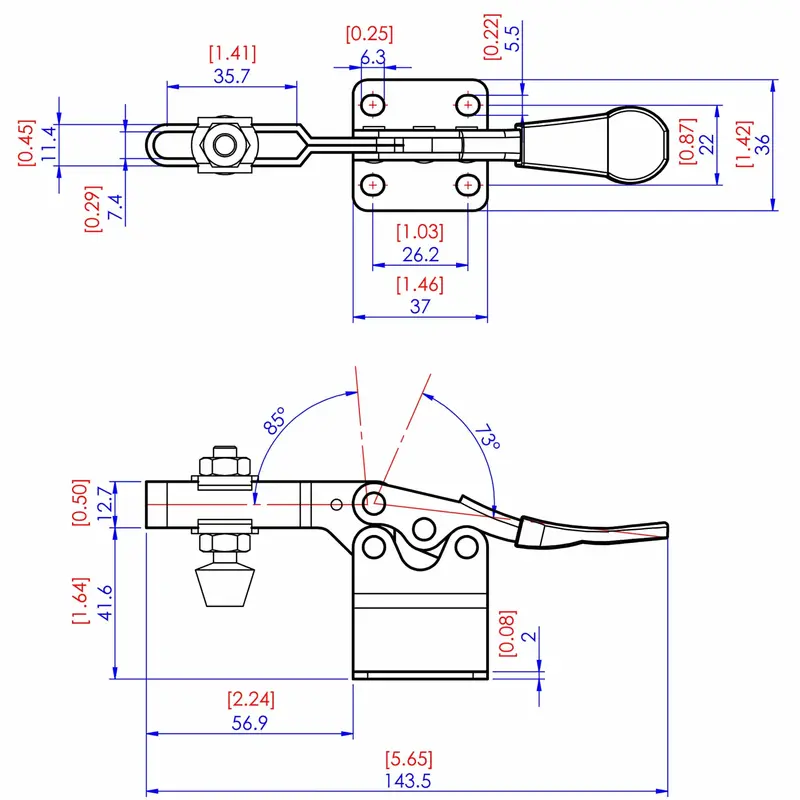

Specifications:

• Arm Length: 2-1/4″
• Base Height: 1-5/8″
• Maximum Thickness Under Foot: 7/8″
• Adjustable Rubber Pressure Tip: 1/4″ x 20
• Holding Capacity: 200 lb.

What’s Included:

• (1) WoodRiver® High Base Toggle Clamp – 2-1/4″ x 7/8″ – 200 lb
