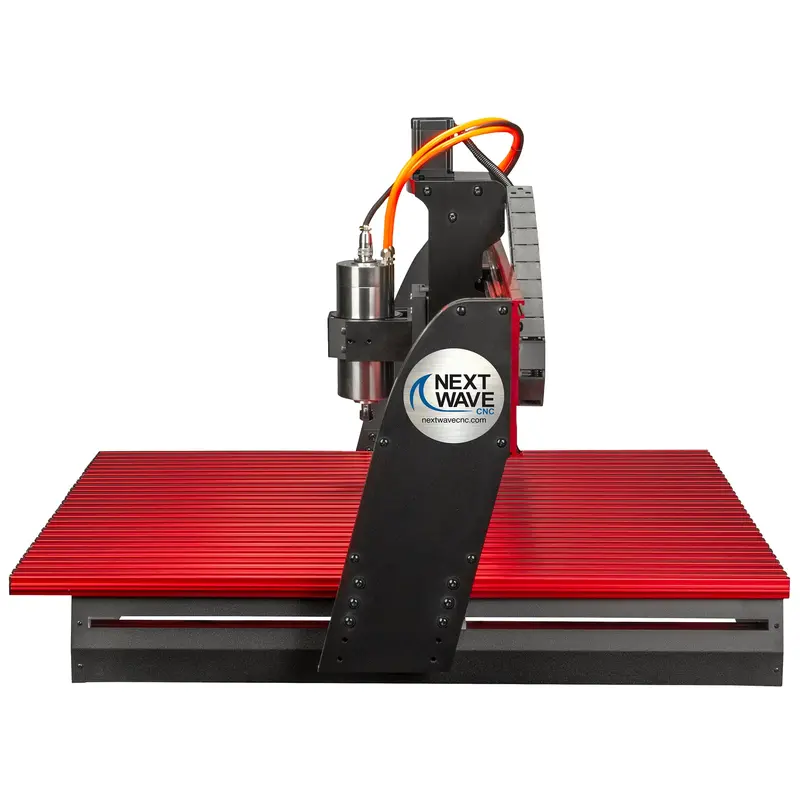

SHARK HD510 Precision CNC Milling Machine

Description

Handle all your machining needs in a home shop environment or on the production floor with the Next Wave® CNC SHARK HD510. Built with industrial grade components, the CNC SHARK HD510 also features a heavy-duty aluminum and steel reinforced gantry, an extruded aluminum router mount system, interlocking aluminum table, linear rails and guides on the gantry, and anti-backlash, wear-compensated lead screws on all axes. The SHARK HD510 CNC machine is the ideal tool for carving or machining a large variety of projects made from wood, soft metals, composites, or plastics.

Features:

• Colored touch screen pendant controller
• Ready2Control software allowing multi-machine operation: start, stop, rewind, and go to G-code location as well as project queuing for reliable bit change applications
• X & Y homing capability
• Linear guides and bearings on the gantry
• Anti-backlash, wear-compensated lead screws on all axis
• Interlocking rigid aluminum table with virtually unlimited clamp positioning
• Aluminum gantry backplate for heavy machining capabilities
• Extruded Aluminum router and spindle mounts
• Steel encased gantry legs for increased rigidity
• Automatic router on and off control
• USB interface
• One-year warranty on parts and labor
• Lifetime technical support
• Made in the USA

Specifications:

• Table Dimensions: 28” x 36”
• XYZ Travel: 25” x 25” x 7”
• Overall Dimensions: 36-1/4” W x 38” L x 24-1/2” H

What’s Included:

• (1) Full one-year warranty and lifetime technical support through Next Wave Automation
• (1) CNC SHARK HD510 machine
• (1) Vectric VCarve Desktop design software
• (1) Color pendant controller
• (2) Hold-down clamps
• (1) Carbide V-bit
• (1) Virtual Zero Unlimited Software and Vector Art 3-D Sampler Pack

Notes:

• Fully compatible with these routers (sold separately): Next Wave Water-Cooled Spindle, Bosch 1617 and 1618, Porter-Cable 690 and 890 Series (6902VS must be manually started), DeWalt 610, 616, 618 series.
• The SHARK HD510 CNC machine is fully compatible with Next Wave’s extensive product line of additional accessories, such as laser, 4th axis, scanner, and more – all sold separately.
• Requires PC computer with USB 2.0 Port and a USB Flash Drive (both sold separately).
